CloudTAK Extraction, Transformation, and Load (ETL)🔗

Introduction🔗

CloudTAK provides a robust ETL (Extraction, Transformation, and Load) framework that allows users to seamlessly integrate data from various sources into the CloudTAK ecosystem. This document outlines the key components and processes involved in CloudTAK's ETL integrations.

Connections🔗

Connections form the core container through which integrations push or pull data into and out of the TAK ecosystem.

Connections at their core are a single private/public key certificate pair.

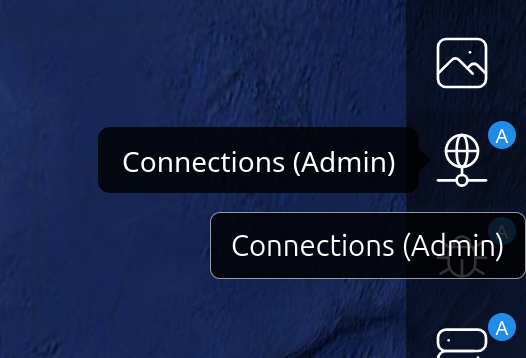

Connections can be access from the CloudTAK Main Menu:

Large Device Side Menu	From within the Main Menu

Publishing an ETL Task🔗

Before an ETL task can be used inside CloudTAK it must be built into a Docker container, pushed to the AWS Elastic Container Registry (ECR), and registered as an Integration via the CloudTAK Admin UI.

Build & Push the Docker Container to ECR🔗

ETL containers are built and pushed with the cloudtak-etl CLI, which is published as part of the @tak-ps/etl package (v10.10.0 or newer).

Prerequisites🔗

Node.js v24 or newer
Docker with the buildx plugin (included in modern Docker installs)
The AWS CLI, used to authenticate Docker against ECR

Install the CLI🔗

ETL tasks built on the ETL Base library already have @tak-ps/etl as a dependency, so from the root of the ETL task directory a plain npm install makes the CLI available via npx:

npm install
npx cloudtak-etl --help

Alternatively the CLI can be installed globally, making cloudtak-etl available in any ETL repository:

npm install --global @tak-ps/etl

Build & Push🔗

Author a capabilities.json. The CLI requires a capabilities.json document in the root of the ETL repository, describing the task, the permissions it needs, and the invocation modes it supports:

{
    "version": "1.0.0",
    "name": "ArcGIS ETL",
    "description": "Pull features from an ArcGIS Feature Server",
    "permissions": [{
        "resource": "feature:*",
        "required": true,
        "description": "Write features to the connection"
    }],
    "compute": {
        "memory": 512,
        "timeout": 300
    },
    "invocations": {
        "incoming": {
            "schedule": {
                "description": "Poll the Feature Server on a schedule",
                "default": {
                    "enabled": true,
                    "schedule": "rate(1 minute)"
                }
            }
        }
    }
}

The document is validated against the StaticCapabilities schema exported by @tak-ps/etl and embedded in the container's OCI Image Manifest, where the CloudTAK API reads it directly from ECR.

Set the version. Open the ETL task's package.json and ensure the version field is set to the version you intend to build. This value is used as the container image tag in ECR.

Configure AWS credentials. Ensure valid AWS credentials are present in your current shell environment. The CLI requires the following environment variables to be set:

Variable	Description
`AWS_REGION`	The AWS region your CloudTAK deployment lives in.
`AWS_ACCOUNT_ID`	The 12 digit AWS account ID hosting the ECR repository.
`Environment`	(Optional) Deployment environment. Defaults to `prod`.

Note

Standard AWS credential environment variables (AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY, and AWS_SESSION_TOKEN if applicable) must also be present so the CLI can authenticate against ECR.

Run the CLI. From the root of the ETL task directory:
```
npx cloudtak-etl
```
The CLI will:
- Authenticate Docker against the CloudTAK tasks ECR repository.
- Validate the capabilities.json document and embed it in the image manifest as an OCI annotation.
- Build a linux/amd64 Docker image named after the ETL's git repository.
- Tag and push the image using the repository name and the package.json version (e.g. tak-vpc-prod-cloudtak-tasks:etl-arcgis-v1.0.0).

Register the Integration in the Admin UI🔗

Once the container has been pushed to ECR, register it so CloudTAK can discover the available versions.

Navigate to the CloudTAK Admin UI at map.<your-domain>/admin.
Open the Integrations section and click the + button in the upper right corner.
Fill in the integration details:

Field Description

Name A human readable name for the integration.

Container Prefix The name of the git repository the ETL task is stored in (e.g. etl-arcgis).

Important

The Container Prefix must match the git repository name used during the build, as this is how CloudTAK locates the pushed container images in ECR.
Click Save, then open the newly created Integration. The version you built and pushed earlier should now be listed as an available version.
With the Integration registered, an ETL layer can now be created inside a new or existing Connection.
